Item NO.:
YF-12260HHPayment:
30% TT in advance, 70% before deliveryGoods Stock:
500Warranty:
1 YEARBrand:
EFORKProduct Detail
Product Detail
Product Name: High-speed stacker

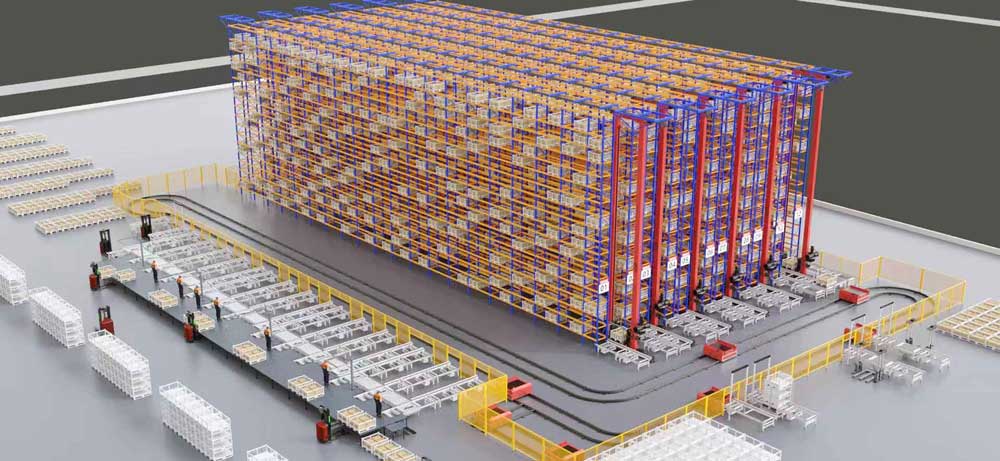

Stacker is the core equipment of the whole automatic three-dimensional warehouse. It can transport goods from one place to another through manual operation, semi-automatic operation or full-automatic operation.
Product Features
1. Light load
2. High speed
3. Flexible
4. Precise and reliable operation
5. Servo drive technology is adopted for walking and lifting, which can ensure the high reliability of operation under high acceleration and high speed;
6. The single-column lightweight body is adopted, and the column is made of special aluminum profiles;
7. The lifting device adopts automatic tensioning synchronous toothed belt transmission mechanism.
Basic parameters
| High-speed stacker | Technical parameter |
| Model | YF-12260HH |
| Max. load capacity | 100kg |
| Max. working height | ~10m |
| Common unit size (box or bin) | L600mm*W400mm |
| Available fork types | Plate type, clamp type and hook type |
| Horizontal speed | 280m/min |
| Vertical velocity | 100m/s |
| Horizontal acceleration | 3m/s² |
| Vertical acceleration | 3m/s² |
| Fork acceleration | 0.5m/s² |
| Positioning mode | Laser or barcode |
| Fork operation positioning accuracy | ±3mm |
| Horizontal operation positioning accuracy | ±3mm |
| Note: other load customization is acceptable, and the data is for reference only, and the details shall be subject to the actual vehicle. | |
