Item NO.:
CBD20Payment:
T/T OR L/CProduct Origin:
ChinaColor:
Green/ RedShipping Port:
NANJING / SHANGHAILead Time:
15-20daysOrder(MOQ):
1Product weight:
800Warranty:
1 YearBrand:
EFORKProduct Detail

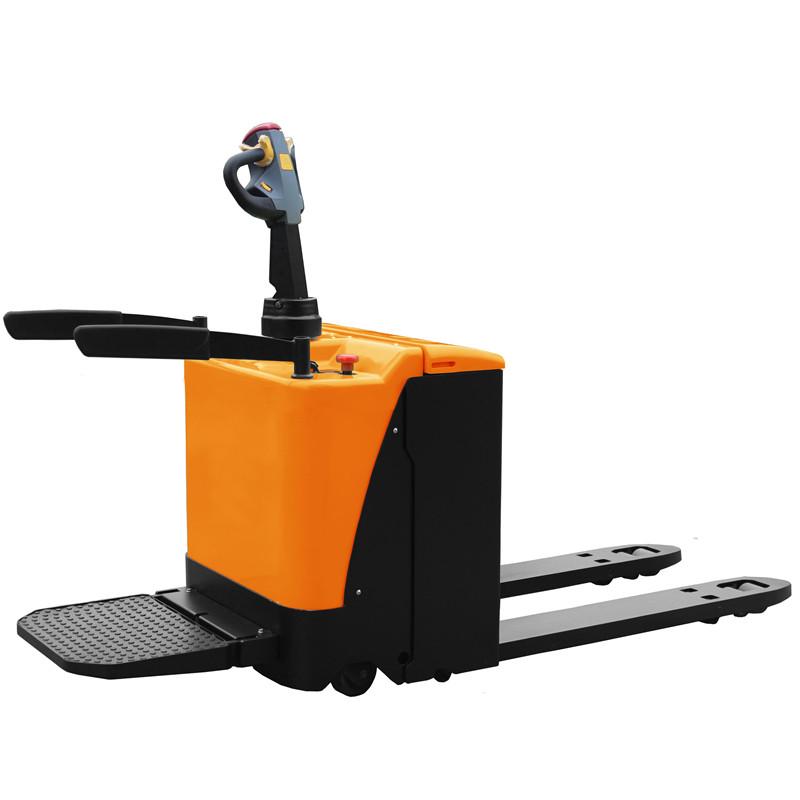

Product Name:CBD Series Electric Pallet Truck 2.0/2.5/3.0t
High performance EFORK CBD series electric pallet trucks are perfect for your warehouse requirement
Video:
Product Advantage:
Performance
● Station-driving standard power distribution steering makes the control lighter and more flexible.
● The control system, precise and stable control, and higher efficiency.
Comfort
●The platform is equipped with a shock absorption design, which greatly improves the ride comfort and reduces the fatigue of long driving.
●With integrated joystick, it is simple and beautiful, and all operation functions can be easily completed with one hand.
Safety
●It has three kinds of braking functions: release brake, reverse brake and emergency brake to ensure the safety of driving.
●The speed of the station-drive standard is automatically reduced with the increase of the steering angle.
Basic parameters:
Characteristics | 1.1 | Model | CBD20Ⅲ | CBD25Ⅲ | CBD30Ⅲ | CBD40Ⅲ | CBD50Ⅲ | |
1.4 | Power (electricity, diesel, petrol, LPG, manual) | Electric | Electric | Electric | Electric | Electric | ||
1.5 | Operation (manual, walkie, side-standing, order picker) | Stand type | Stand type | Stand type | Stand type | Stand type | ||
1.6 | Rated towing capacity | EPS | EPS | EPS | EPS | EPS | ||
1.7 | Rated hitch towing capacity | Q(kg) | 2000 | 2500 | 3000 | 4000 | 5000 | |
1.8 | Wheelbase | C(mm) | 600 | 600 | 600 | 600 | 600 | |
1.9 | Self weight with battery | Y(mm) | 1380 | 1380 | 1380 | 1495 | 1455 | |
Weight | 2.1 | Battery weight | kg | 710 | 730 | 750 | 800 | 1020 |
3.1 | Wheel type | PU | PU | PU | PU | PU | ||
Wheels, Chassis |
3.2 | The front wheel specification | ∅×w(mm) | φ80*80 | φ80*80 | φ80*80 | φ80*80 | φ80*110 |
3.3 | The rear wheel specification | ∅×w(mm) | φ230*75 | φ230*75 | φ230*75 | φ230*75 | φ254*102 | |
3.4 | The balance wheel specification | ∅×w(mm) | φ125*50 | φ125*50 | φ125*50 | φ125*50 | φ150*50 | |
Dimensions | 4.1 | Maximum lifting height | H(mm) | 205 | 205 | 205 | 210 | 225 |
4.2 | forks face height after lowering | H1(mm) | 85 | 85 | 85 | 90 | 105 | |
4.3 | Forks outer width | S1(mm) | 685/540 | 685/540 | 685/540 | 685 | 720 | |
4.4 | Vehicle length (pedal folded/unfolded) | L(mm) | 1825/2240 | 1825/2240 | 1825/2240 | 1950/2365 | 1950/2365 | |
4.5 | Vehicle width | S(mm) | 760 | 760 | 760 | 850 | 850 | |
4.6 | Forks dimensions | s/e/l(mm) | 55/175/1150 | 55/175/1150 | 55/175/1150 | 60/180/1200 | 70/215/1200 | |
4.7 | Stacking aisle width, pallet 1000*1200 (1000 placed cross forks)(pedal folded/unfolded) | Ast(mm) | 2220/2620 | 2220/2620 | 2220/2620 | 2520/2925 | 2520/2925 | |
4.8 | Load bearing distance | X(mm) | 970 | 970 | 970 | 1015 | 1015 | |
4.9 | Minimum turning radius (pedal folded/unfolded) | Wa(mm) | 1670/2070 | 1670/2070 | 1670/2070 | 1785 | 1785 | |
Performance | 5.1 | Travel speed, full loaded/loaded | km/h | 6/5.5 | 6/5.5 | 6/5 | 5/4 | 5/4 |
5.2 | Lifting speed, full loaded/loaded | m/s | 0.043/0.040 | 0.043/0.040 | 0.043/0.040 | 0.045/0.043 | 0.042/0.04 | |
5.3 | Lowering speed, full loaded/loaded | m/s | 0.035/0.445 | 0.035/0.445 | 0.035/0.445 | 0.035/0.048 | 0.35/0.045 | |
5.4 | Maximum gradeability, full loaded/loaded | % | 10/8 | 10/8 | 10/6 | 10/6 | 8/5 | |
5.5 | Service brake | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | ||
Motor | 6.1 | Drive motor power | KW | 1.5 | 1.5 | 1.5 | 2.5 | 3 |
6.2 | lifting motor power | KW | 0.8 | 0.8 | 0.8 | 2.2 | 3 | |
6.3 | Battery type | Lead acid | Lead acid | Lead acid | Lead acid | Lead acid | ||
6.4 | Battery voltage/capacity | V/Ah | 24V210Ah | 24V210Ah | 24V210Ah | 24V280Ah | 24V300Ah | |
6.5 | Battery charger | V/Ah | 24V/30Ah | 24V/30Ah | 24V/30Ah | 24V/40Ah | 24V/40Ah | |
Other | 7.1 | Drive control mode | AC | AC | AC | AC | AC | |
7.2 | Driver's ear noise level according to EN12053 | dB(A) | 75 | 75 | 75 | 75 | 75 |
Configuration:
1. Curtis brand AC control system, stepless speed regulation;
2.Famous brand hydraulic lifting pump station;
3. 24V / 210ah lead acid battery;
4. 24V / 30A external intelligent charger.
5.Famous brand seal for vehicle
6. Vertical AC drive motor
7. ZF transmission in Germany
8. High wear resistant polyurethane wheel (bearing wheel, driving wheel, balance wheel)
9. Pedal with damping
10. Drive damping
11. Curve speed limiter
12.Famous brand waterproof plug-in
14. Electromagnetic brake
15. Electronic steering
